> For the complete documentation index, see [llms.txt](https://ai-security-docs.akto.io/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://ai-security-docs.akto.io/akto-argus-agentic-ai-security-for-homegrown-ai/connectors/others/hybrid-saas.md). # Connect Akto with Hybrid SaaS Learn how to send agentic traffic data to Akto SaaS from your cloud setup. ## Getting API Token {% stepper %} {% step %} Go to [app.akto.io](https://app.akto.io). {% endstep %} {% step %} Login/Signup into your account. {% endstep %} {% step %} Click on **Connectors** in the left nav. {% endstep %} {% step %} Open the **Setup Guardrail** card and copy your token from there. {% endstep %} {% endstepper %} ## Installing Traffic connector You can use either a CloudFormation template, Terraform template, a Helm chart or a Linux VM to install Traffic aggregator in your env. Each method below also includes an optional step to enable redaction for traces. ### Terraform {% stepper %} {% step %} **Install the mini-runtime** Use the Terraform script [here](https://github.com/akto-api-security/infra/blob/mini_runtime_tf_script/templates/mini-runtime.tf). * Please make sure you install it in a private subnet from your application VPC. * This private subnet should also have network connectivity (typically via NAT). {% endstep %} {% step %} **Set the Akto inputs** You can use `https://cyborg.akto.io` as `DatabaseAbstractorUrl`. For `DatabaseAbstractorToken`, refer to the [Getting API Token](#getting-api-token) section above. {% endstep %} {% step %} **Enable redaction for traces (optional)** Add the environment variables to the mini-runtime to redact sensitive data in stored traces. See [Enabling redaction for traces](#enabling-redaction-for-traces). {% endstep %} {% step %} **Copy the output** Once complete, copy `akto_nlb_dns` from the output. {% endstep %} {% step %} **Install a traffic connector** Use the above copied `AktoNLBIP` as `AKTO_KAFKA_BROKER_MAL` in your traffic connectors. Note that `AKTO_KAFKA_BROKER_MAL` is inclusive of port (eg `akto-N-.....amazonaws.com:9092`). {% endstep %} {% endstepper %} ### CloudFormation template {% stepper %} {% step %} **Install the mini-runtime** Run the CloudFormation template [here](https://raw.githubusercontent.com/akto-api-security/infra/feature/quick-setup/templates/mini-runtime.yml). * Please make sure you install it in a private subnet from your application VPC. * This private subnet should also have network connectivity (typically via NAT). {% endstep %} {% step %} **Set the Akto inputs** You can use `https://cyborg.akto.io` as `DatabaseAbstractorUrl`. For `DatabaseAbstractorToken`, refer to the [Getting API Token](#getting-api-token) section above. {% endstep %} {% step %} **Enable redaction for traces (optional)** Add the environment variables to the mini-runtime to redact sensitive data in stored traces. See [Enabling redaction for traces](#enabling-redaction-for-traces). {% endstep %} {% step %} **Copy the output** Once complete, go to the **Output** section of CloudFormation Stack and copy `AktoNLBIP`. {% endstep %} {% step %} **Install a traffic connector** Use the above copied `AktoNLBIP` as `AKTO_KAFKA_BROKER_MAL` in your traffic connectors. Note that `AKTO_KAFKA_BROKER_MAL` is inclusive of port (eg `akto-N-.....amazonaws.com:9092`). {% endstep %} {% endstepper %} ### Helm chart {% stepper %} {% step %} **Add the Akto helm repository** If you have K8s clusters, you can use helm chart to install Traffic aggregator. ```bash helm repo add akto https://akto-api-security.github.io/helm-charts/ ``` {% endstep %} {% step %} **Install the akto-mini-runtime helm chart** Install it in your kubernetes cluster using one of the following options. 1. Directly using database abstractor token ```bash helm install akto-mini-runtime akto/akto-mini-runtime -n --set mini_runtime.aktoApiSecurityRuntime.env.databaseAbstractorToken="" ``` 2. Storing the database abstractor token in a secret ```bash helm install akto-mini-runtime akto/akto-mini-runtime -n --set mini_runtime.aktoApiSecurityRuntime.env.useSecretsForDatabaseAbstractorToken=true --set mini_runtime.aktoApiSecurityRuntime.env.databaseAbstractorTokenSecrets.token="" ``` 3. Bring your own secret which has the database abstractor token ```bash helm install akto-mini-runtime akto/akto-mini-runtime -n --set mini_runtime.aktoApiSecurityRuntime.env.useSecretsForDatabaseAbstractorToken=true --set mini_runtime.aktoApiSecurityRuntime.env.databaseAbstractorTokenSecrets.existingSecret= ``` Running the above commands in your k8s cluster will deploy a new Akto Traffic aggregator service. {% endstep %} {% step %} **Enable redaction for traces (optional)** Add the environment variables to the mini-runtime pods to redact sensitive data in stored traces. See [Enabling redaction for traces](#enabling-redaction-for-traces). {% endstep %} {% step %} **Copy the Traffic aggregator service address** Run the below command and copy the `CLUSTER-IP` and `PORT` value for Traffic aggregator service. In the below example it will be `10.0.23.145:9092`. You can also use the kubernetes service ip, which in this case will be `akto-mini-runtime-mini-runtime.dev.svc.cluster.local:9092` ```bash kubectl get svc -n ```

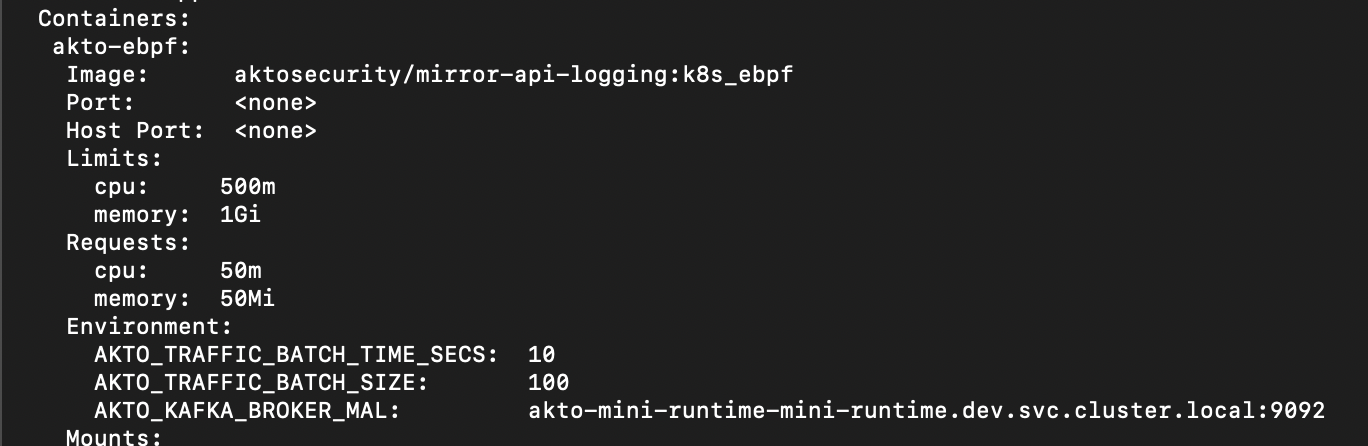

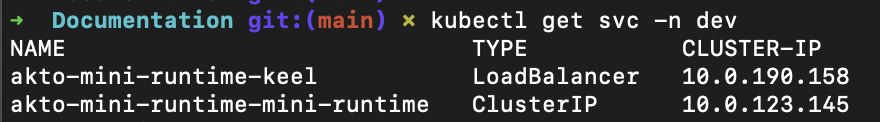

{% endstep %} {% step %} **Install a traffic connector** Use the above copied `IP:PORT` value as `AKTO_KAFKA_BROKER_MAL` in your traffic connectors. Note that `AKTO_KAFKA_BROKER_MAL` is inclusive of port (eg `10.0.23.145:9092`, `akto-mini-runtime-mini-runtime.dev.svc.cluster.local:9092`)
{% endstep %} {% endstepper %} ### Linux VM {% stepper %} {% step %} **Create a new instance with the following requirements** * Platform: Amazon Linux 2023 * Spec: 2 vCPU, 4GB RAM, 20GB Hard disk. Don't use burstable instances. * Network: Private subnet, connectivity to internet (typically via NAT), connectivity to your staging service. * Security groups: Inbound, open ports 22 and 9092. Outbound, open all. {% endstep %} {% step %} **SSH into the instance** SSH into this new instance in your Cloud and run `sudo su -`. {% endstep %} {% step %} **Install Docker** Install [docker](https://github.com/akto-api-security/infra/blob/feature/quick-setup/get-docker.sh) and [docker-compose](https://github.com/akto-api-security/infra/blob/feature/quick-setup/get-docker-compose.sh). {% endstep %} {% step %} **Download the setup files** ``` wget https://raw.githubusercontent.com/akto-api-security/infra/refs/heads/feature/quick-setup/docker-compose-mini-runtime.yml wget https://raw.githubusercontent.com/akto-api-security/infra/refs/heads/feature/quick-setup/watchtower.env wget https://raw.githubusercontent.com/akto-api-security/infra/refs/heads/feature/quick-setup/docker-mini-runtime.env wget https://raw.githubusercontent.com/akto-api-security/infra/refs/heads/feature/quick-setup/docker--detection.env ``` {% endstep %} {% step %} **Update the configuration** * Modify ${AKTO\_KAFKA\_IP} in the `docker-compose-mini-runtime.yml` with the ip of your instance on which runtime will be deployed. * Replace the value of `DATABASE_ABSTRACTOR_SERVICE_TOKEN` in `docker-mini-runtime.yml` with the token from the [Getting API Token](#getting-api-token) section above. Also replace the value of `AKTO_KAFKA_BROKER_URL` with \:9092. * Also replace the value of `AKTO_THREAT_PROTECTION_BACKEND_TOKEN` and `DATABASE_ABSTRACTOR_SERVICE_TOKEN` in `docker-threat-detection.env` with the same token. {% endstep %} {% step %} **Enable redaction for traces (optional)** Add the environment variables to the mini-runtime configuration to redact sensitive data in stored traces. See [Enabling redaction for traces](#enabling-redaction-for-traces). {% endstep %} {% step %} **Start the mini-runtime** Run `docker-compose -f docker-compose-mini-runtime.yml up -d` {% endstep %} {% step %} **Enable Docker on restart** Run `systemctl enable /usr/lib/systemd/system/docker.service` to ensure Docker starts up in case of instance restarts. {% endstep %} {% endstepper %} ## Enabling redaction for traces Set the following environment variables on the mini-runtime to redact sensitive data in stored traces. For Helm deployments, they work the same way for the mini-runtime pods. {% hint style="info" %} **Required environment variables** * `AKTO_GUARDRAIL_REDACTION_ENABLED=true` * `AKTO_GUARDRAIL_REDACTION_URL=http://:8080` `AKTO_GUARDRAIL_REDACTION_URL` is the base URL of your guardrails service, without `/api`. There is deliberately no default value, so you must set it. {% endhint %} ## Important Notes 1. Ensure internet connectivity in Traffic aggregator service. 2. In case of closed network, please whitelist () 3. Ensure that traffic connector is able to connect to Traffic aggregator service 4. Log levels for Akto services can be configured by setting the environment variable `AKTO_LOG_LEVEL` * Supported values include `TRACE`, `DEBUG`, `INFO`, `WARN`, `ERROR` and `OFF`. * Default log level is set to `WARN`. ## Get Support for your Akto setup There are multiple ways to request support from Akto. We are 24X7 available on the following: 1. In-app `intercom` support. Message us with your query on intercom in Akto dashboard and someone will reply. 2. Join our [discord channel](https://www.akto.io/community) for community support. 3. Contact `help@akto.io` for email support. 4. Contact us [here](https://www.akto.io/contact-us).
