# TrueFoundry

## Overview

TrueFoundry is a comprehensive ML platform that helps you deploy and manage LLM-powered applications at scale. The **TrueFoundry AI Gateway** routes all LLM traffic through a centralized gateway, enabling security, monitoring, and cost management.

Akto integrates with TrueFoundry AI Gateway as a **external guardrail server**, providing real-time security validation and comprehensive traffic monitoring for all your LLM interactions. Once configured, TrueFoundry AI Gateway automatically sends requests to Akto for security analysis.

The Akto TrueFoundry integration automatically:

* **Validates Input Requests**: Checks user prompts against security policies before they reach your LLM (input guardrails)
* **Blocks Malicious Requests**: Prevents prompt injection, jailbreaks, and policy violations in real-time
* **Monitors LLM Responses**: Analyzes model outputs for sensitive data leakage and policy violations (output guardrails)
* **Ingests Traffic**: Captures all LLM interactions for security analysis and compliance
* **Provides Visibility**: Centralizes monitoring of all TrueFoundry AI Gateway traffic in a unified dashboard

## How It Works

Akto acts as an **external guardrail plugin** for TrueFoundry AI Gateway:

### Architecture Flow

```mermaid
flowchart TD
    A[Client Application]
    B[TrueFoundry AI Gateway]
    C[Akto Guardrail Server - Validation and Monitoring]
    D[TrueFoundry AI Gateway]
    E[LLM Provider - OpenAI, Anthropic]

    A --> B
    B --> C
    C --> D
    D --> E
```

## How Guardrails Work

### Input Guardrails (Pre-Request Validation)

When you configure input guardrails with **Target: Request**:

* User request is sent to Akto for validation **before** reaching the LLM
* If request **passes** validation: TrueFoundry forwards it to the LLM (user receives LLM response)
* If request **fails** validation: TrueFoundry blocks the request and returns an error to the user (LLM is never called)
* All blocked requests appear in your Akto dashboard for monitoring

### Output Guardrails (Post-Response Monitoring)

When you configure output guardrails with **Target: Response**:

* Request and response are sent to Akto after the LLM has responded
* User receives the LLM response immediately (no blocking)
* All such interactions appear in your Akto dashboard for security analysis and compliance monitoring
* You can review violations, sensitive data exposure, and policy compliance

### Streaming Mode

If your application streams LLM responses (token-by-token), append `?streaming=true` to the Akto TrueFoundry endpoint URL in your guardrail configuration:

```
https://<your-akto-host>:<port>/api/http-proxy/truefoundry?streaming=true
```

In streaming mode, Akto captures each turn of the conversation as it progresses and ingests it for monitoring and compliance. Input guardrail validation still runs on every new user message.

## Prerequisites

Before integrating Akto with TrueFoundry AI Gateway, ensure you have:

* **TrueFoundry AI Gateway**: Active TrueFoundry AI Gateway instance (v1.0+)
* **Admin Access**: Permissions to configure routing and model settings in the TrueFoundry dashboard
* **Akto Traffic Processor**: Configured [Traffic Processor](/akto-argus-agentic-ai-security-for-homegrown-ai/connectors/others/hybrid-saas.md) to receive and analyse LLM traffic
* **Akto Data Ingestion Service**: Running Akto instance with accessible proxy endpoint as:\
  `https://<your-akto-host>:<port>/api/http-proxy/truefoundry`
* **Network Access**: TrueFoundry AI Gateway can reach the Akto Data Ingestion Service endpoint
* **HTTPS Recommended**: Secure communication between TrueFoundry and Akto helps protect data in transit

{% hint style="warning" %}
Ensure the Akto Data Ingestion Service is reachable from your TrueFoundry AI Gateway instance. Test connectivity before proceeding.
{% endhint %}

## Integration Steps

You can integrate Akto with TrueFoundry in two ways:

* **Option 1:** [Use Akto as an External Provider](#option-1-use-akto-as-an-external-provider-recommended) (recommended)
* **Option 2:** [Use a Custom Guardrail Group ](#option-2-use-a-custom-guardrail-group)(manual setup)

### **Option 1: Use Akto as an External Provider (recommended)**

Use this for a simpler and faster setup:

{% stepper %}
{% step %}
**Go to External Providers**

* Open **AI Gateway**
* Navigate to **External Providers / Guardrails**
* Choose **Akto** from the provider list
  {% endstep %}

{% step %}

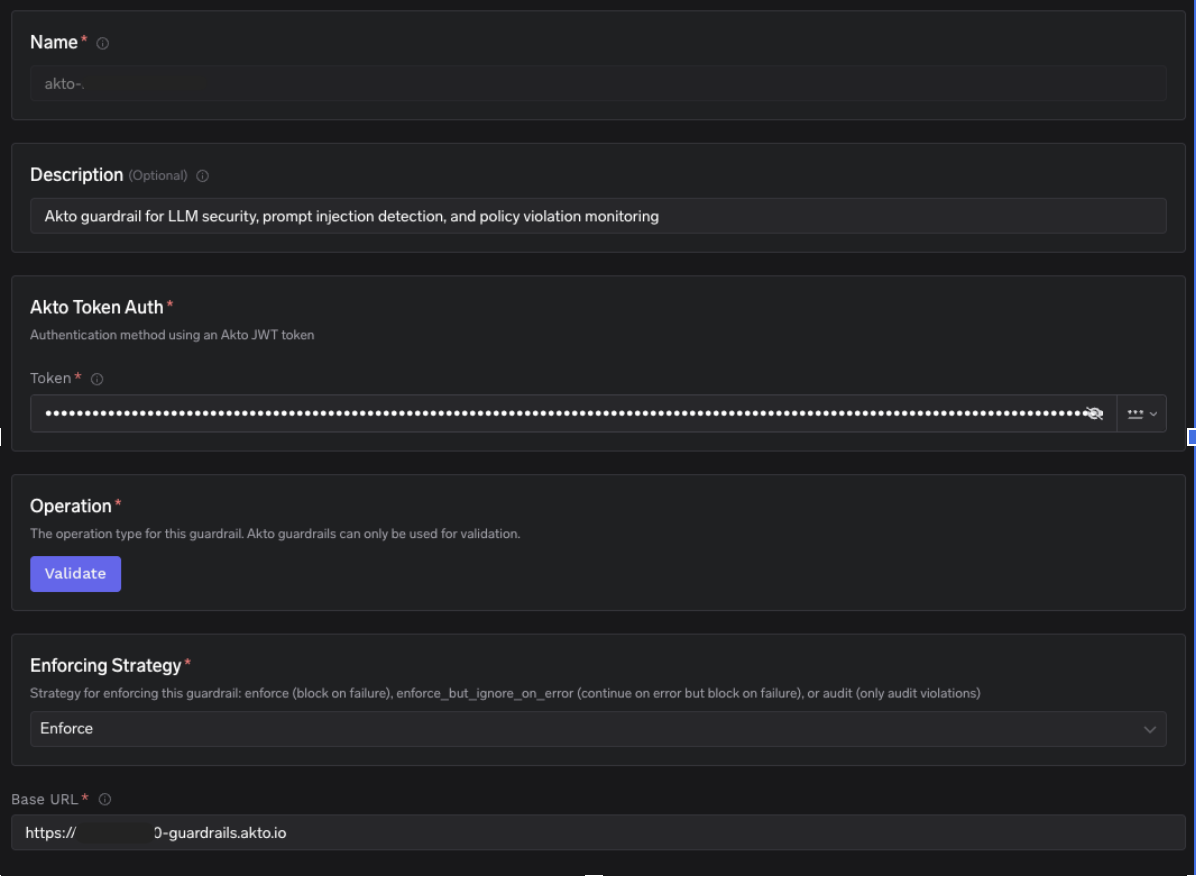

**Configure Akto**

Fill in the required fields:

* **Name**
  * Provide a unique identifier for this integration
* **Description (optional)**
  * Add context (e.g., LLM security, prompt injection detection)
* **Akto Token Auth**
  * Enter your **Akto JWT token**
* **Operation**
  * Set to `Validate`
  * *(Akto supports validation-only guardrails)*
* **Enforcing Strategy**
  * Choose one:
    * `Enforce` → block on failure
    * `Enforce but ignore on error` → fail-open on errors
    * `Audit` → log only, no blocking
* **Base URL**
  * Enter your Akto guardrail service url.
  * Contact the **Akto Support Team** to get this URL.
  * Example:

    ```
    https://<your-akto-instanceID>-guardrails.akto.io
    ```

<div data-with-frame="true"><figure><img src="/files/QZSCMax7d1NceEV2YrwS" alt="" width="563"><figcaption></figcaption></figure></div>
{% endstep %}

{% step %}
**Save the Provider**

* Click **Save**
* Akto is now available as a selectable guardrail provider
  {% endstep %}

{% step %}
**Attach to Your Gateway Flow**

* Select Akto while configuring:
  * Model routes, or
  * Guardrail rules (input/output)
    {% endstep %}

{% step %}
**Validate**

* Send test requests through the gateway
* Confirm Akto is enforcing policies
  {% endstep %}
  {% endstepper %}

### **Option 2: Use a Custom Guardrail Group**

{% stepper %}
{% step %}
**Navigate to TrueFoundry AI Gateway Dashboard**

1. Log in to your TrueFoundry account
2. Navigate to **AI Gateway** in the sidebar
3. Click on **Guardrails** tab
4. Click **Add New Guardrails Group**
   {% endstep %}

{% step %}
**Configure Guardrails Group**

Fill in the guardrails form for input/output validation:

**Basic Settings:**

* **Name**: `akto-guardrails` (or your preferred name)
* **Access Control**: Add users/teams who should have access
* **Guardrails**: This is where you configure the custom guardrails. Click on **Add Guardrail** and select **Custom** under **External Providers**.

**Adding a Guardrail:**

1. **Name**: `akto-input-guardrail` (or your choice)
2. **Description (Optional)**: `Add a description for this guardrail`
3. **Operation**: Select **Validate**
4. **Enforcing Strategy**: Choose **Enforce**, this will block requests that fail validation
5. **Target**: Request (for input guardrails) or Response (for output guardrails)
6. **Config**:
   * **URL**: Enter your Akto Data Ingestion Service URL (e.g., `https://<your-akto-host>:<port>/api/http-proxy/truefoundry`)

{% hint style="warning" %}
**Important**: You must add **both** input and output guardrails for complete security coverage:

* **Input Guardrail** (Target: Request) - Validates and blocks malicious requests before reaching the LLM
* **Output Guardrail** (Target: Response) - Monitors responses and ingests all interactions for compliance

To add both, click on **Add Guardrail** twice and configure each with the appropriate **Target** setting.
{% endhint %}

Finally, save the Guardrails Group by clicking on **Add Guardrails Group**.
{% endstep %}

{% step %}
**Add Guardrails to model:** You can add the saved guardrails to the model in one of the two ways:

1. **In the Playground**: When testing your model in the TrueFoundry Playground, you can add guardrails by clicking on the plus icon next to Input/Output Guardrails in the left panel, and adding the desired guardrails from the list.

{% hint style="warning" %}
Guardrails are only applied in the Playground and not in production traffic. You will also need to add the guardrails for every new session in the Playground.
{% endhint %}

2. **At the Controls Page**
   1. Navigate to the **Controls** tab in the TrueFoundry AI Gateway dashboard
   2. Click on Guardrails
   3. Click on **Add Rule**
   4. Fill in the form:
      * **Rule ID**: `akto-guardrail` (or your preferred name)
      * **When Request Goes To**: Select the model(s) you want to apply the guardrail to (e.g., `gpt-4`, `claude-2`, etc.)
      * **From Subjects**: Select the users/teams you want to include/exclude from the guardrail
      * **Apply on Hooks**: Select the specific LLM Hook (input/output) and choose the corresponding guardrail that you created.
   5. Click on **Submit** to save the rule.
      {% endstep %}
      {% endstepper %}

## What happens when Akto blocks a request

When Akto blocks a request, TrueFoundry AI Gateway will:

1. **Not forward** the request to the LLM provider
2. Return an error response to the client
3. Log the blocked request for audit purposes

You can review these events in the [Guardrail Activity](/agentic-guardrails/concepts/guardrail-activity.md) page in Ako Argus Dashboard.

## Get Support

For assistance with your TrueFoundry integration:

1. **In-app Support**: Message us via Intercom in the Akto dashboard
2. **Community**: Join our [Discord channel](https://www.akto.io/community)
3. **Email**: Contact <support@akto.io>
4. **Website**: Visit our [contact page](https://www.akto.io/contact-us)


---
